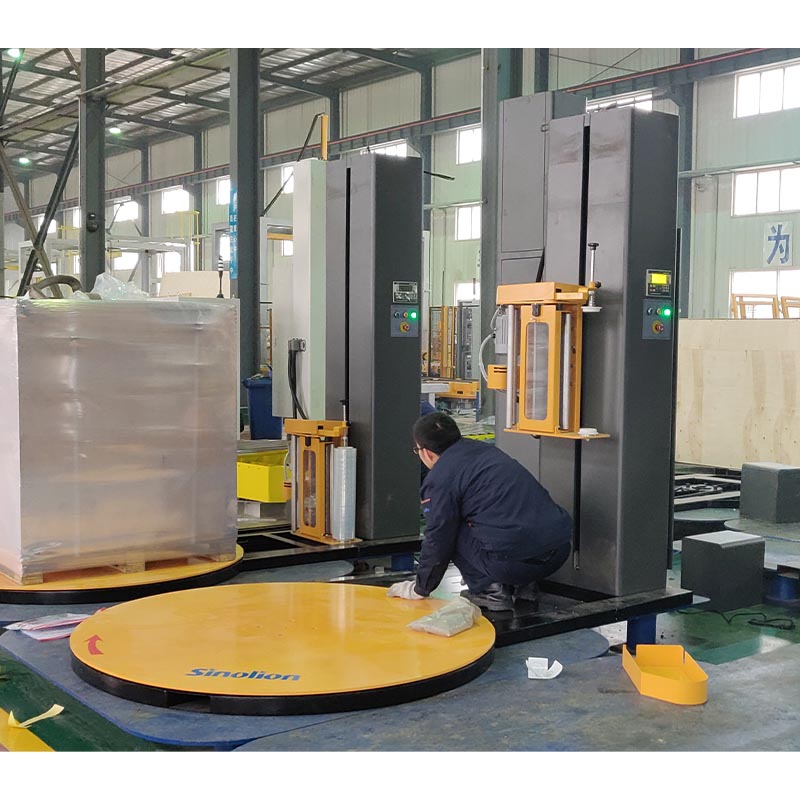

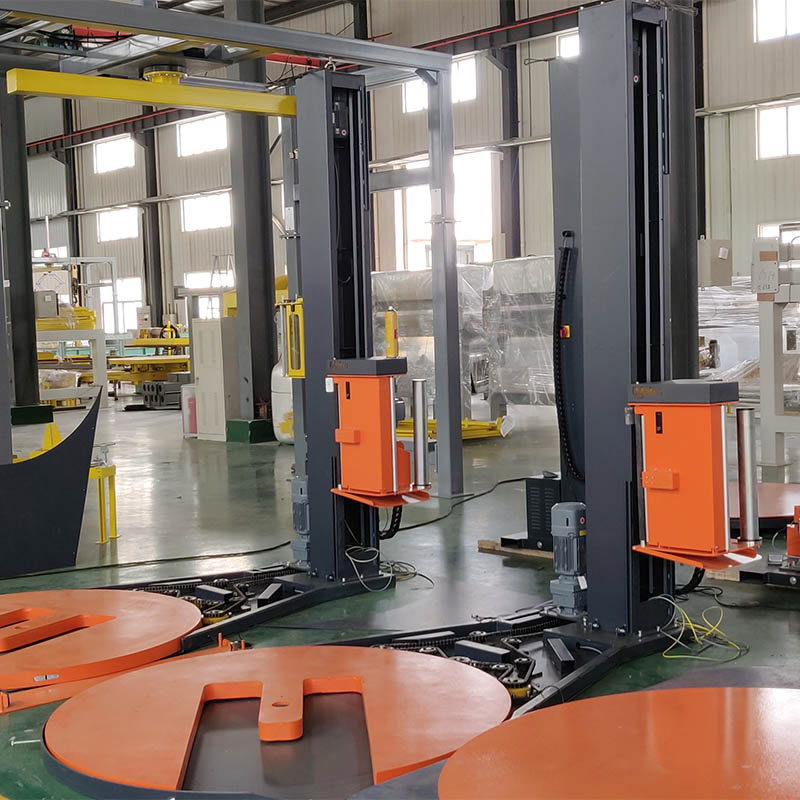

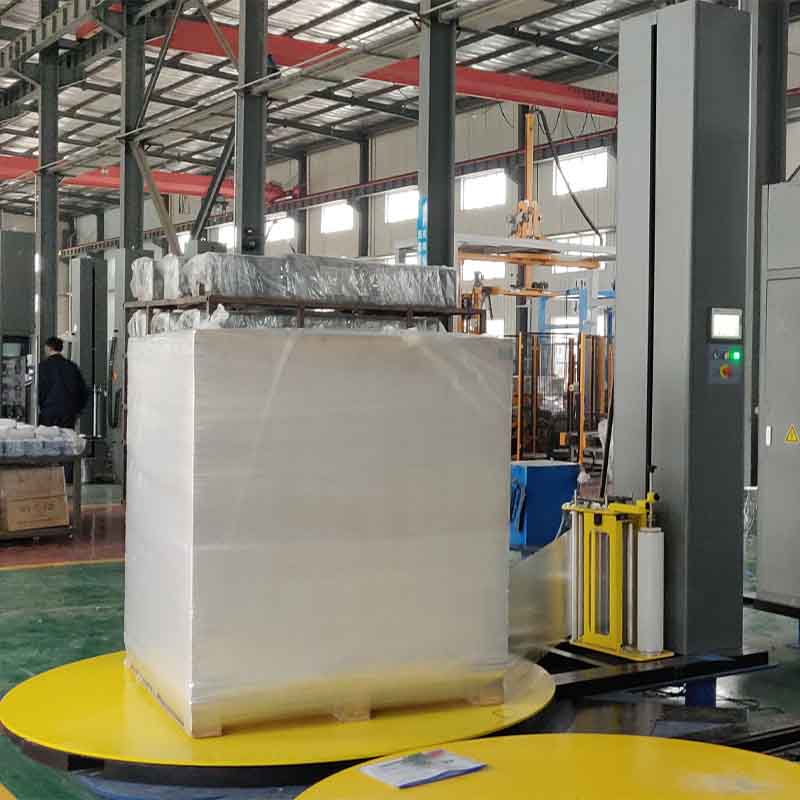

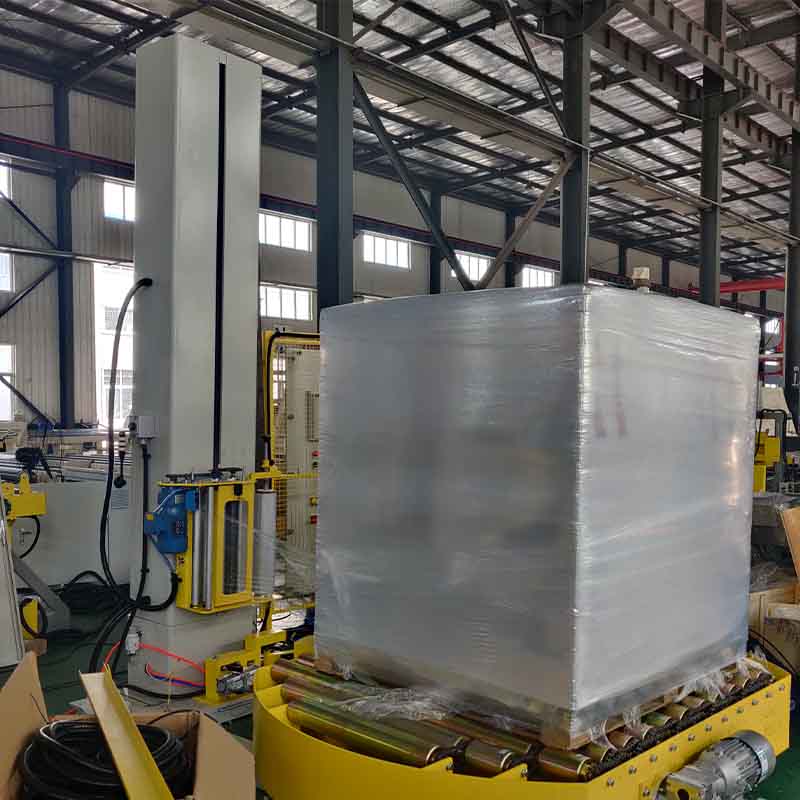

Fully Automatic Electric Pallet Stretch Wrapping Machine

Pallet Wrappers in Dispatch Operations Significantly Increase Output, Eliminate Worker Strain and Reduce the Likelihood of Damaged in Transit. We Offer a Range of Pallet Wrappers from Base Models Through to Fully Automatic Models, and are Fully Customized with a Variety of Optional Functions to Meet the Various Requirements of Customers. Contact Us Today, We Can Advise the Pallet Wrapper Solutions Depending on Your Budget and Output for Your Business.

Contact Now E-Mail Telephone WhatsApp

Product Details

Control system	PLC control system
	Photo eye pallet height sensor
	3-12 RPM variable turntable speed by frequency changer
Turntable	Go home position after wrap cycle finished
	Soft start/soft stop
	Heavy duty chain drive
Film carriage	Powered pre-stretch system to 300% to min film consumption
	Film delivery barlable speed by spparate AC Drive Motor
	Heavy duty double-chain carriage lift, calm and safety
Technology Data	Max load size(mm): 1200(L)X1200(W)X2400(H)
	Turntable dia: 1650mm
	Turntable Height: 77mm
	Turntable weight capacity: 2000kgs
	Turntable speed: 3-12rpm
	Electrics: 220V 50HZ 1 phase
	Power: 1.5KW
	Packing efficiency: 20-40 load/h base on load
Option	Ramp
Option	Top plate
