New Paper Roll Strapping Machine
1 Description and electric brand
1.1 The whole machine is equipped with automatic swords threading system.
1.2 With the function of auto tape threading.
1.3 The lifting of strapping heading is driven by gear motor SEW to ensure stable operation and reliable braking.
1.4 The internal of every strapping is 15s.TheTstrapping head can be made modell VK10 K120-16 of TITAN Germany.
1.5 The PLC is SmartS7-200 control system (SIEMENS). The customer can v set the times and distance as per the requirement.
Item | Specifications |
Strapping width | Max. 1200mm |
Strapping height | Max. 2000mm |
Feeding speed of strap | 4.6m/second |
Tension force | 200-2500N |
Material of strap | PET |
Width of strap | 9.5mm, 12.5mm, 15.5mm |
Thickness of strap | 0.6-0.8mm |
Strapping efficiency | 13-15 second/strapping |
Power supply | 220V, 380V, 400V 50/60Hz 3PH |
Power | 3 kw |
Inner diameter of strap roll | 406mm |
Width of strap roll | 150mm |
Air pressure | 0.5-0.7Mpa |
The frame is a gantry four-column square tube steel structure, the material is Q235

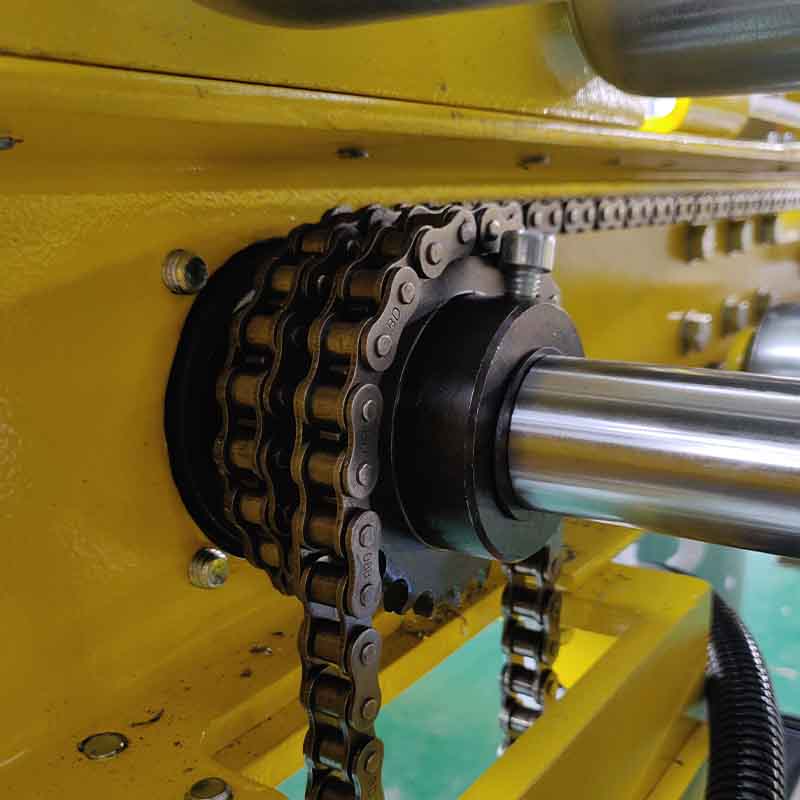

The lifting part of the frame is equipped with a transmission bracket
The rotary ring lifting unit is fixed on the frame of rotary arm by the slewing ring
