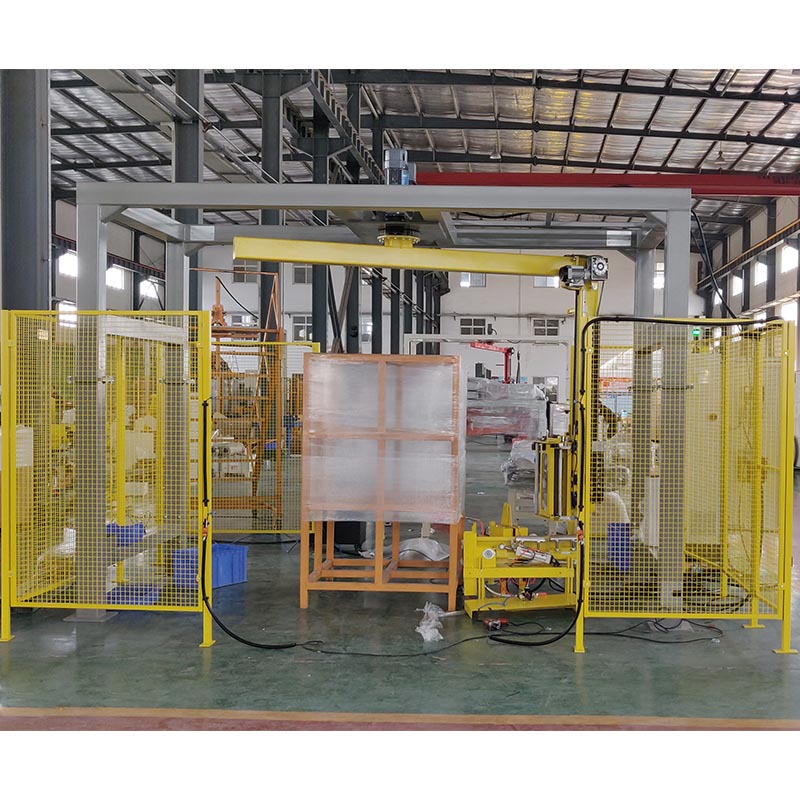

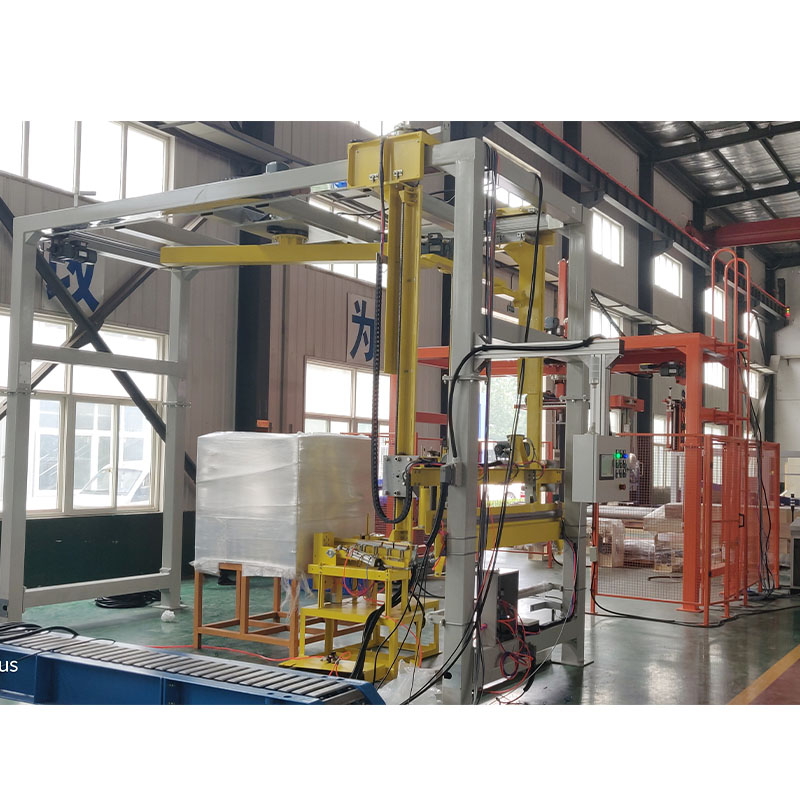

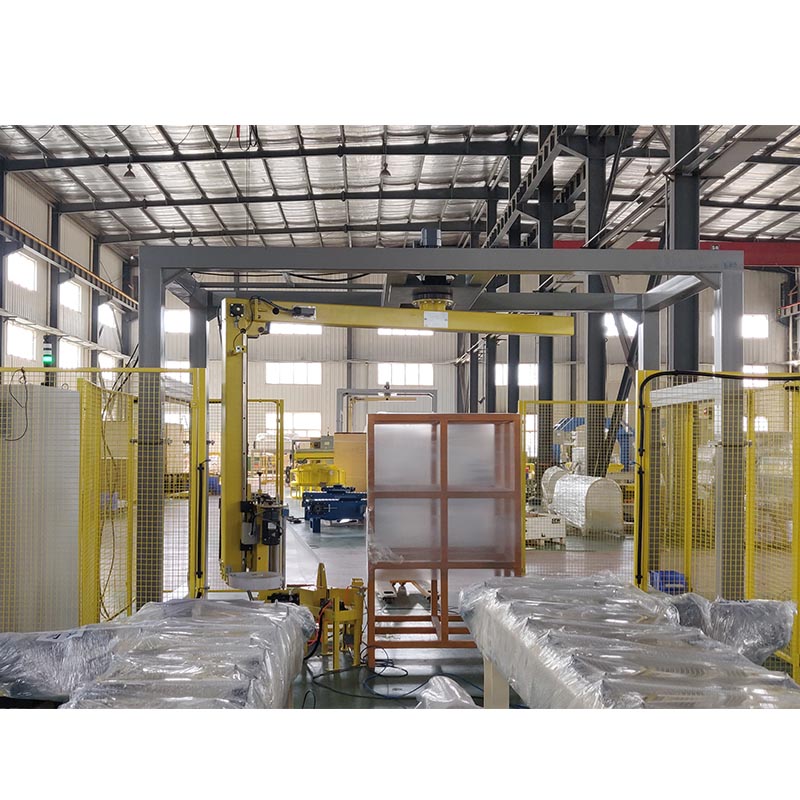

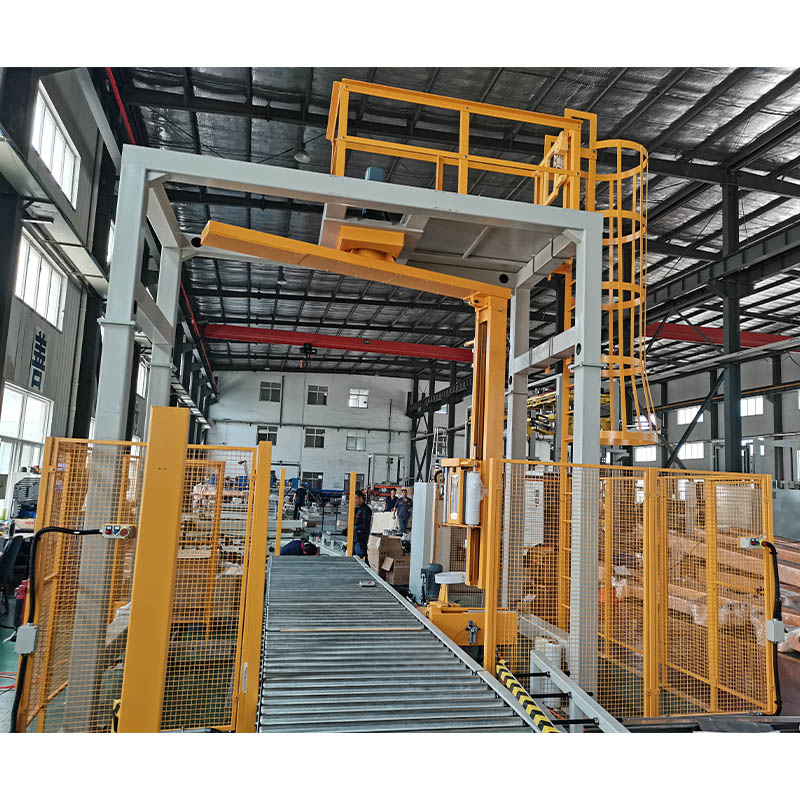

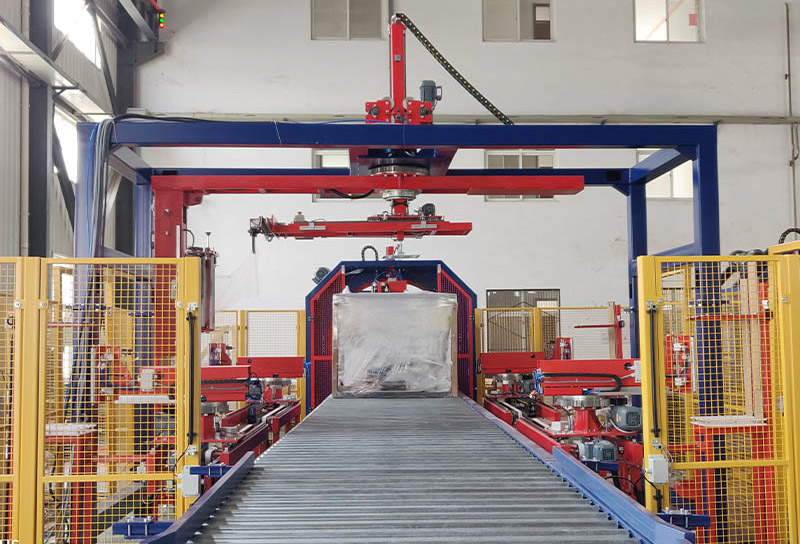

Integrated top sheet dispenser with pallet wrapper
It is mainly designed for lengthy objects such as pipes, timber etc. low strength consumption,high effency & low wrapping costs. The packing end result is properly safety of the product from illness & damage.
No. | Item | Brand | Origin |
1 | PLC & touch screen | Siemens | Germany |
2 | Inverter | Schneider | France |
3 | Proximity switch | Omron | Japan |
4 | Limit switch | Omron | Japan |
5 | Power switch | Schneider | France |
6 | Relay | Omron | Japan |
7 | Photoeye | Panasonic | Japan |
8 | Pneumatic parts | Airtec Rodless cylinder: SMC | Taiwan, China Japan |
9 | Motor | Chinese brand | China |
allet dimension: L1200mm * W1200mm * H1800mm
Volt: 380Volts, 50Hz, 3 phase
Top sheet length: adjustable according to the pallet (normally 1200mm+2*300mm)
Sheet delivery speed: 9.5m/min
Film feeding frame moving speed: 4.5m/min
Sheet cutting: knife blade, pneumatic driven
Film roll width: Max. 1800mm
Film roll outer diameter: 260mm
Film roll inner diameter: 76.2mm
Top-sheet length: 1100-1800mm (max) adjustable
Film roll is placed upper ground, auto film cutting;
Power: film feeding motor 0.4kw; film feeding frame motor 1.1kw.
