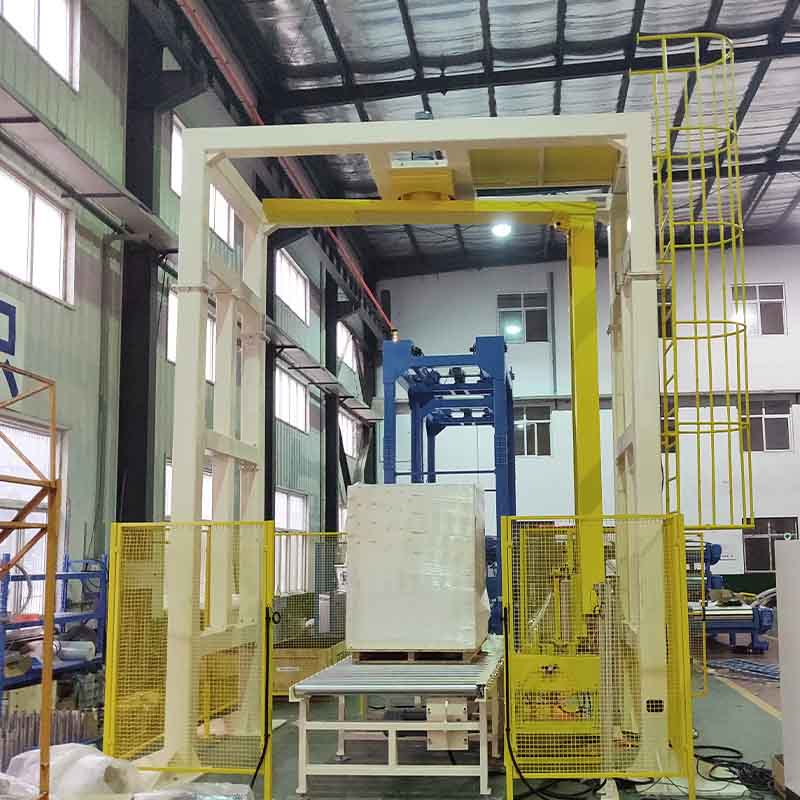

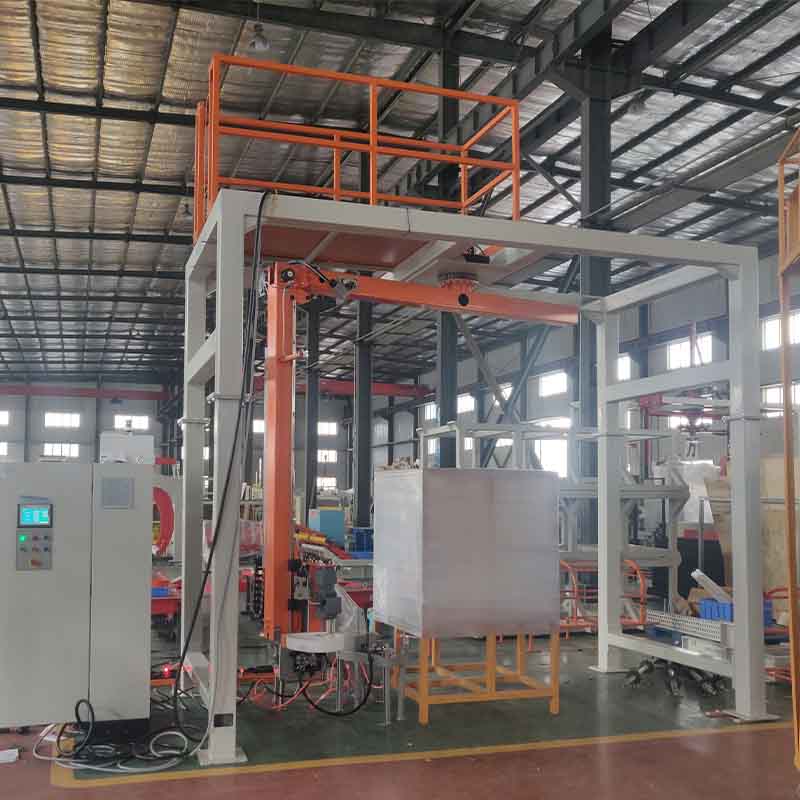

High Speed Vertical Rotating Arm Film Wrapping Machine- End of Line Packing System

The important frame, 4 strong columns linked by way of a stable building consisting of
heavy rectangular cartridge profile, totally sprayed in RAL color and designed for the most secure suspension of the swivel arm;

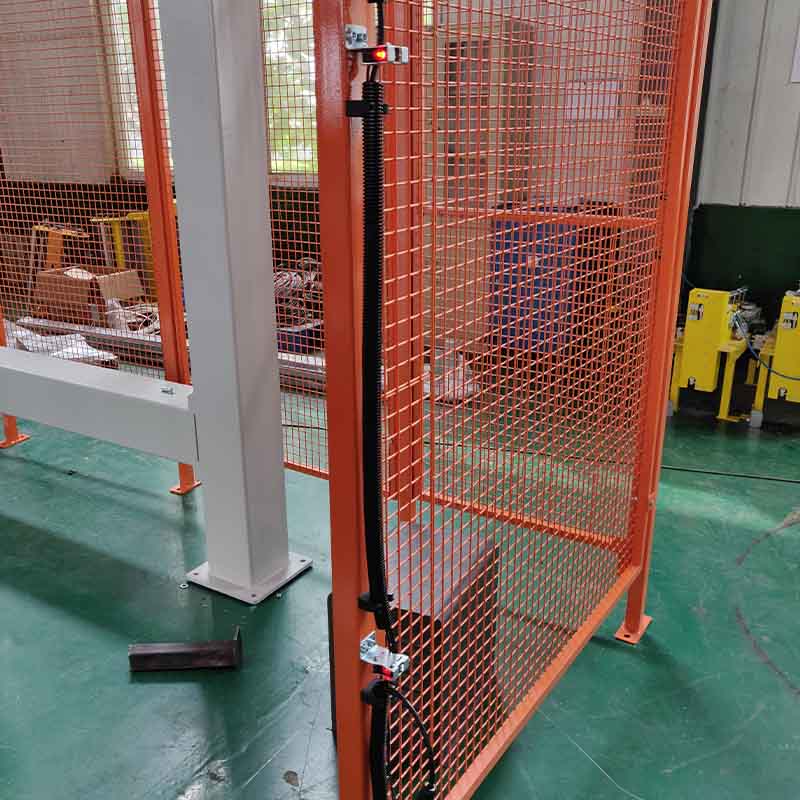

Metal fencing equipped with mild displays with mute feature on the enter and output aperture of the computer in order to forestall humans from coming into the wrapping zone. These mild screens, protection type IV IP66, are outfitted onto a separate column in order to stop the transmission of vibrations from the fencing.

Contact Now E-Mail Telephone WhatsApp

Product Details

Max load size	1200 L 1300W 2200H mm
Packing efficiency	20-40 loads / hour
Arm speed	3-15rpm
Machine weight	680kg
Power supply	1.3KW 220V 50Hz 1Phase (standard)
Material	LLDPE Stretch Film
Core Diameter	76.2 mm
Film Width	500 mm

Stretch Wrapping Machine

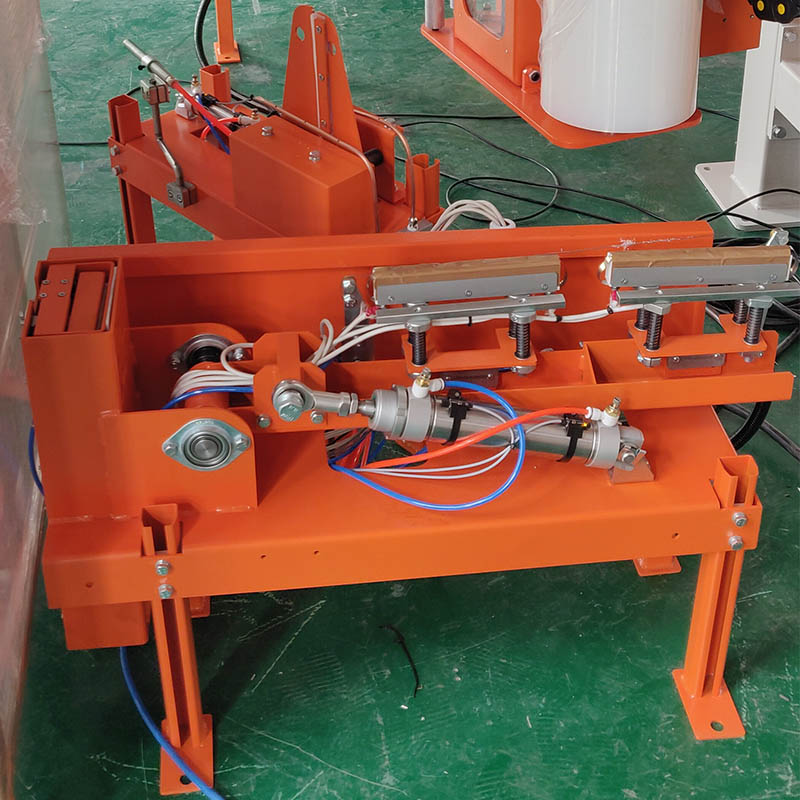

The rotating parts of all driving parts are provided with protective cover. Automatic control system with emergency stop button to ensure safe production.

Stretch Wrapping Machine
