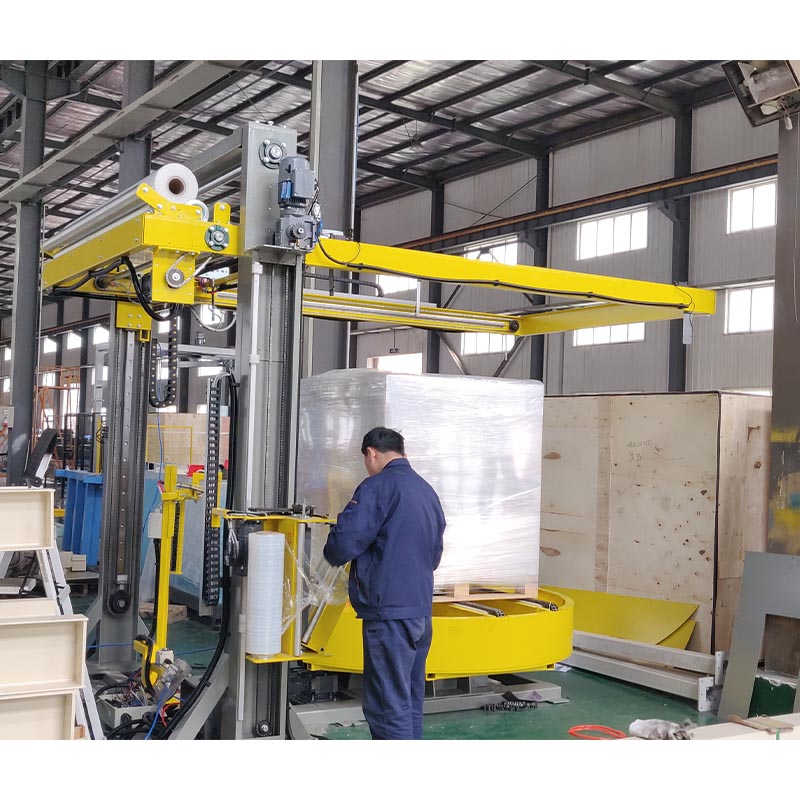

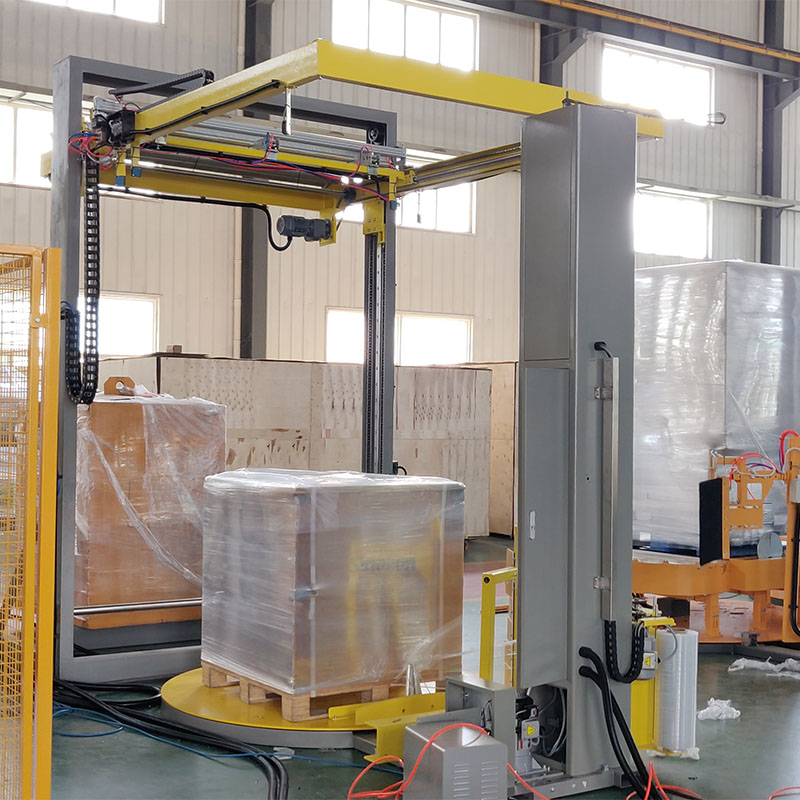

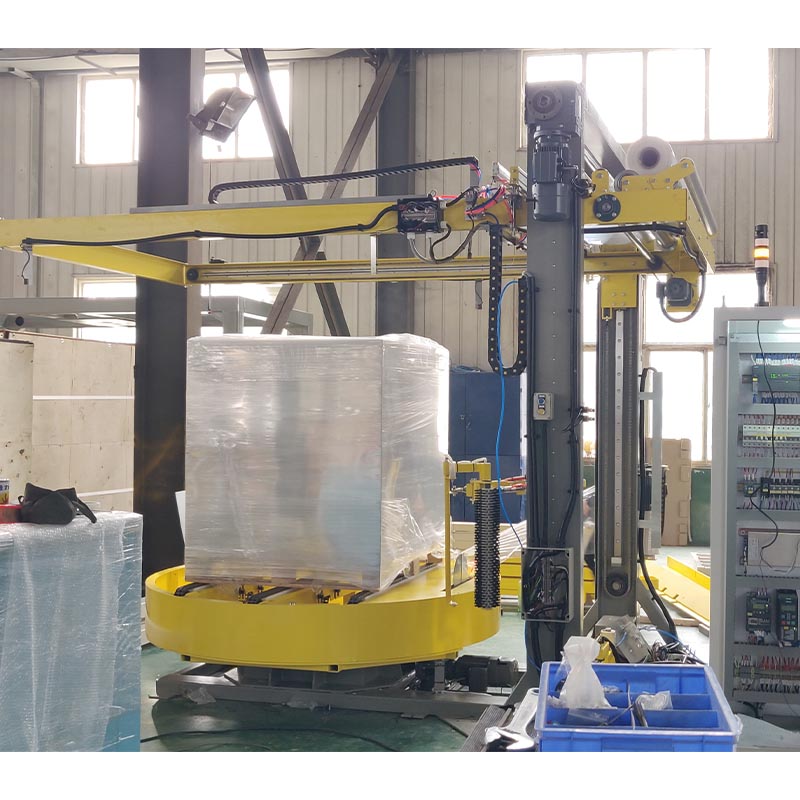

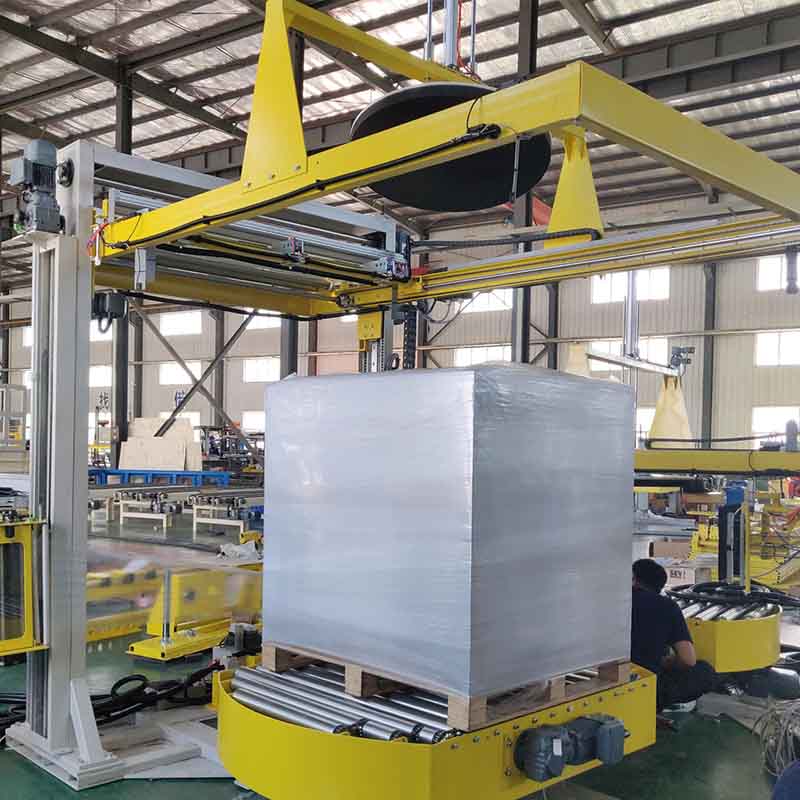

Hot Automatic Turntable Wrapper With Top Sheet Dispenser

Pre-stretch 300% to min film consumption(Prestretch ratio can be specially made)
Carriage door opens for effortless roll change and thread film
Film delivery variable speed by separate AC Drive Motor
Rotating Power slip ring provide power required for carriage drive on rotary arm

Contact Now E-Mail Telephone WhatsApp

Product Details

Technical specifications

Item	Specification
wrapping size(mm)	500-1200mm (L)×500-1200(W)
Wrapping height (mm)	2200mm
Packing efficiency	20-40 loads / hour
Turntable turning speed	0-15rpm (Adjustable, soft start&stop)
Roller conveying speed:	20mpm adjustable
Turntable diameter	1800mm
Height of turntable	To be designed based on customer requirements
Power supply	2.0KW 380V 50HZ 3Phase
Max. load capacity	1500kgs

Stretch Wrapping Machine

OMRON PLC control system
Photo-eye pallet height sensor
0-7 separate top, bottom&up-down wrap count selectors
Reinforce wrap allow more wrap on same location
Film Tension Control adjustment on the panel
3-15RPM variable arm speed by frequency changer
Separate variable carriage up/down speed
Cycle pause capability
