Online Fully Automatic Packaging/ Packing Winding Machine with Input&Output Conveyor Stretch Film Pallet Wrap/Wrapping Machine

300% Pre-stretch rate, save 30% film compared to traditional pallet wrapping machine.

We all use Siemens Touch Screen, Siemens Inverter and Siemens PLC.
Quality is the primary factor we care about. We do not use cheap spare parts because that may cause lots of trouble to our customers.

Contact Now E-Mail Telephone WhatsApp

Product Details

Control system	PLC control system
	Photo eye pallet height sensor
	3-12 RPM variable turntable speed by frequency changer
Turntable	Go home position after wrap cycle finished
	Soft start/soft stop
	Heavy duty chain drive
Film carriage	Powered pre-stretch system to 300% to min film consumption
	Film delivery barlable speed by spparate AC Drive Motor
	Heavy duty double-chain carriage lift, calm and safety
Technology Data	Max load size(mm): 1200(L)X1200(W)X2400(H)
	Turntable dia: 1650mm
	Turntable Height: 77mm
	Turntable weight capacity: 2000kgs
	Turntable speed: 3-12rpm
	Electrics: 220V 50HZ 1 phase
	Power: 1.5KW
	Packing efficiency: 20-40 load/h base on load
Option	Ramp
Option	Top plate

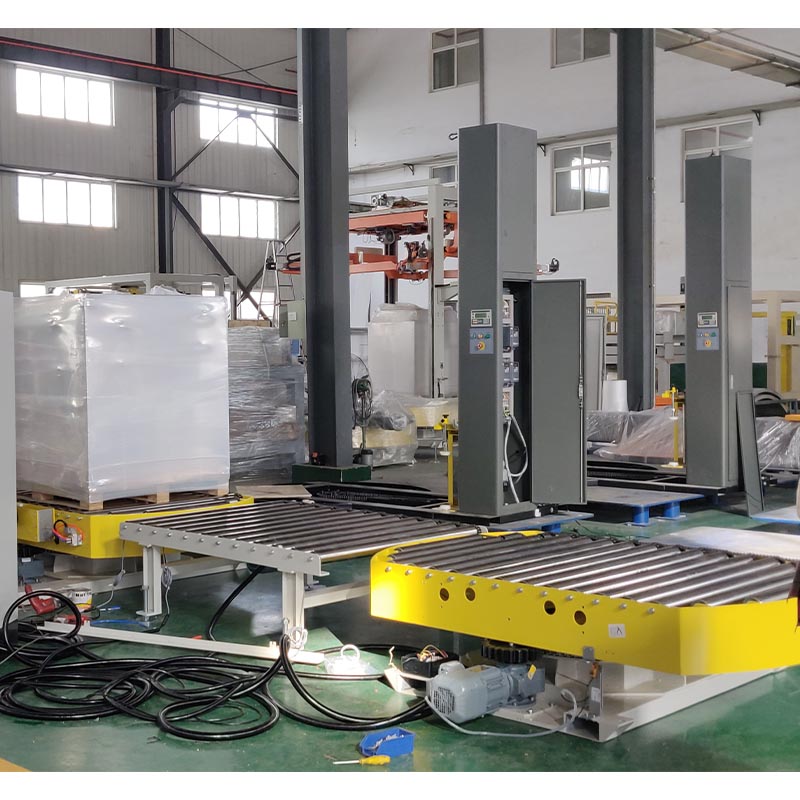

Packing Winding Machine

1.during transport ,no need worry the products fall down when the pallets get violent vibration
2.if the truckfork damage the film on the bottom of pallet, the film do not breach .
3.pallet bottom grip and whole journey grip can replace the horizontal strapping machine

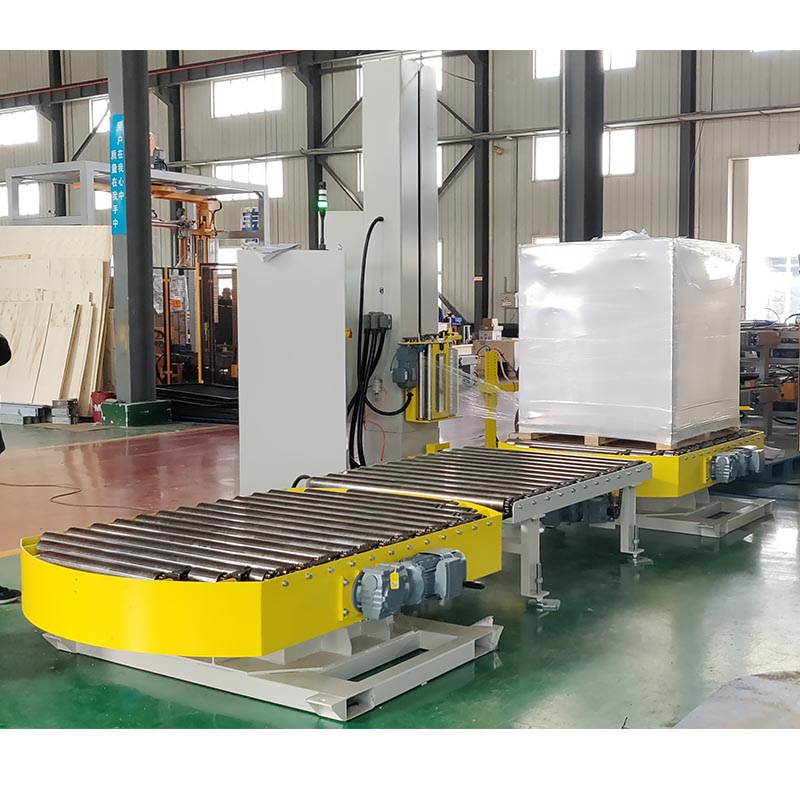

Packing Winding Machine
