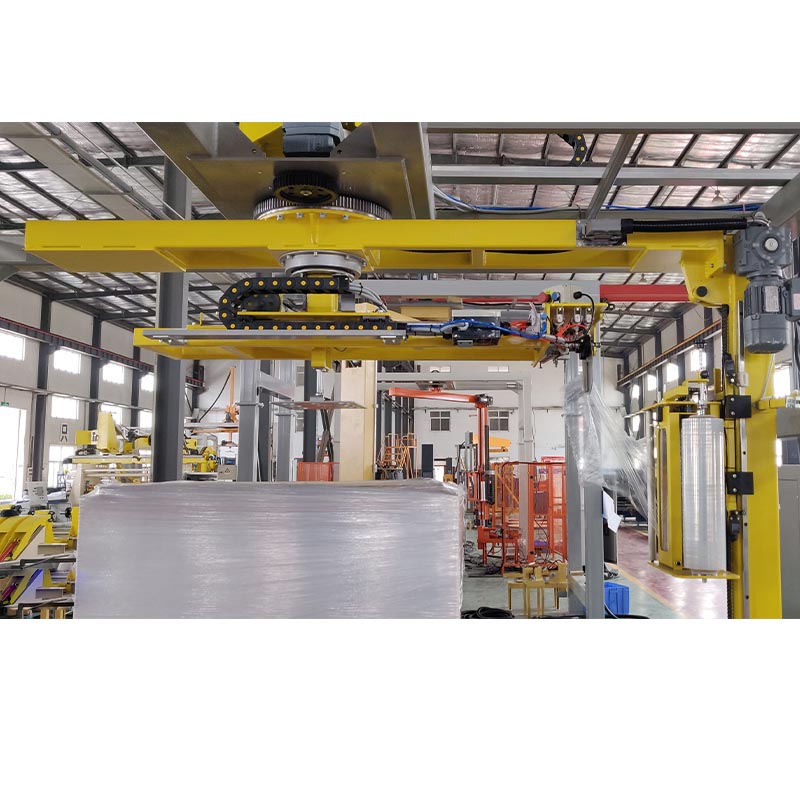

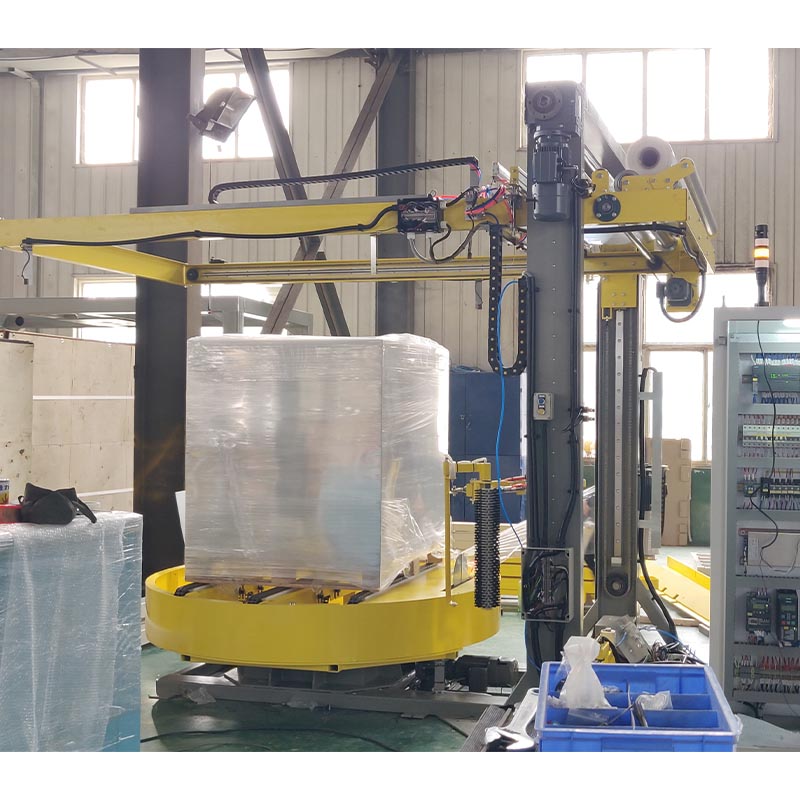

Automatic Turntable Wrapper With Top Sheet Dispenser
ndependent control cabinet
HMI operation panel, showing the working status and fault alarm
Photo eye sensor that automatically senses the height of the load
Strengthen the packaging, allowing more packaging layer at the same location
Set the packaging layer and time on the screen
Item | Specification |
Wrapping specifications | (500-1300)mm*(500-1200)mm. |
Packing height | 2400mm |
Packaging efficiency | 30-60 loads/H available. (Option: or 20-40 loads/H) |
Arm speed | 0-25rpm frequency control. (Option 15rpm, 35rpm) |
Arm performance | High sensitivity emergency brake system, the arm automatically reset. |
Film carriage system | Pre-stretch film carriage, stretch ratio up to 250%, automatic film feeding & cutting device, adjustable speed. |
Lifting column | Chain structure, speed variable frequency adjustable. |
Control system | PLC programmable control, wrapping layer adjustable, automatic height sense. |
Machine weight | 680KG (without support) |
Machine dimensions | 3440mm*1800mm*3220mm (without convey line) |

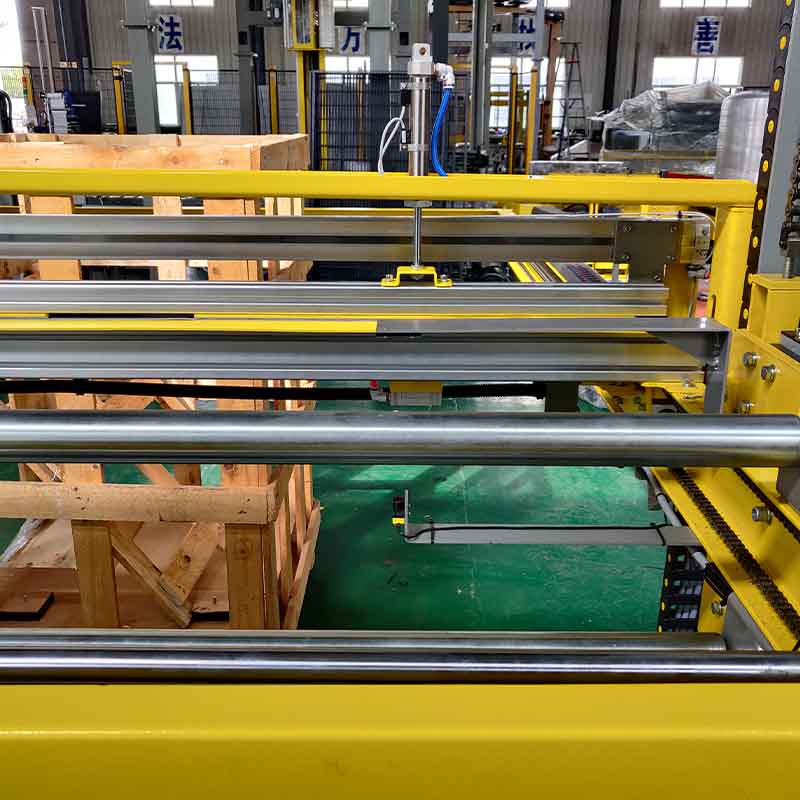

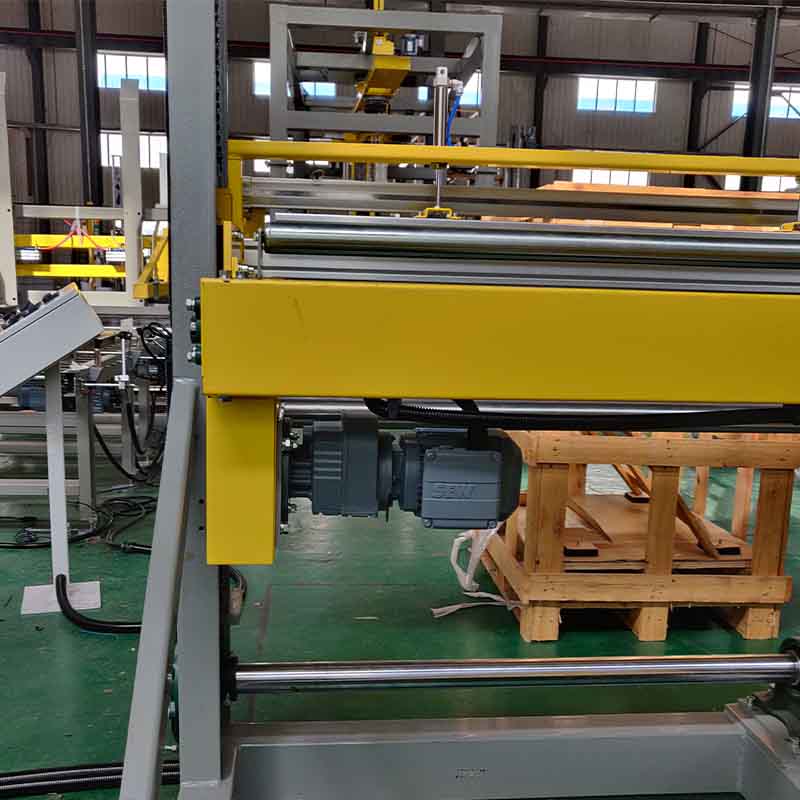

Automotive patch clamp and cutting device (1 set)
After the packaging process is stopped, the film is cut and the film is clamped again
The hot wire cut into thin films, with hot temperature (electrical) automatic bonding film,
Film speed: 9.5m / min
Pull the membrane frame up and down speed: 4.5m / min
Pull the membrane frame up and down distance: to be determined
Film cutting methods: rodless cylinder, blade cutting film
